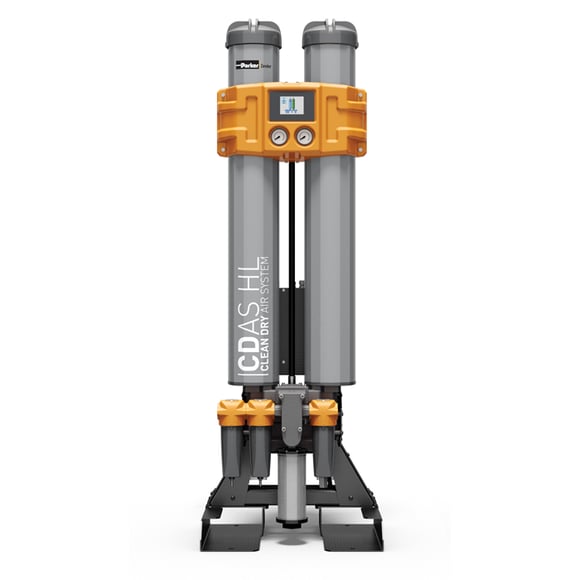

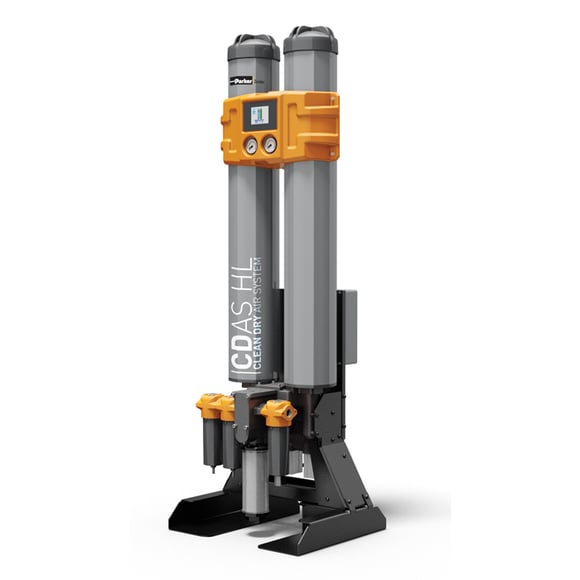

Parker CDAS Compressed Air Drying Systems

Parker CDAS (Clean Dry Air System) dryers have integrated filtration. The optimized combination of a compressed air dryer and advanced OIL-X filtration technology produces the desired class of clean air.

CDAS produces clean, dry air with a pressure dew point of -20°C, -40°C, or -70°C. In the CDAS dryer system, the desiccant is contained in a cartridge filled using a snowstorm filling method. Snowstorm filling maximizes the tight distribution of the desiccant, prevents air channeling, and ensures a consistent dew point. The pressure drop remains low, and the air quality meets ISO 7183 and ISO 8573-1 requirements.

Note: If the application requires completely oil-free air, the Parker OFAS dryer system is the right choice. Compressed air quality classes ISO 8573-1:2010
